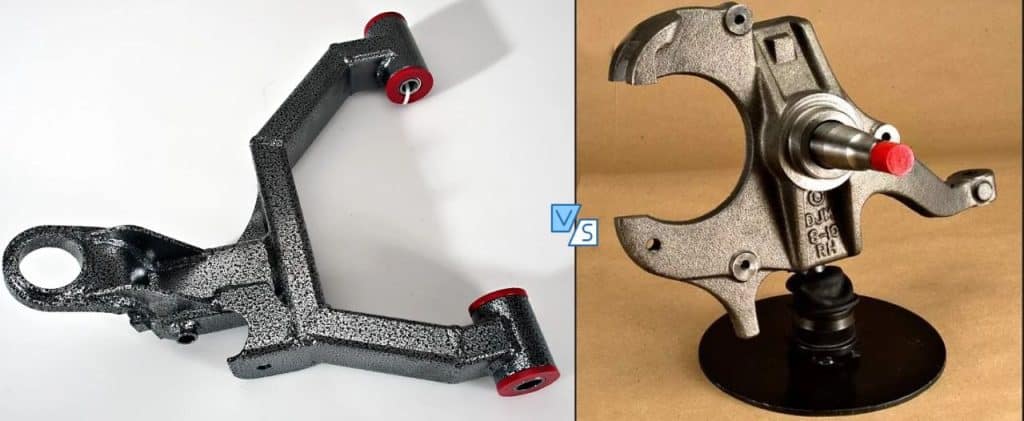

Lowering Control Arms vs. Drop Spindles: Which Is Right for Your Truck?
If you're planning to drop the front end of your truck, you've probably run into the lowering control arms vs drop spindles debate. Both lower the front of a truck, but they get there in different ways, and neither one is right for every build.
Sometimes, these choices can feel confusing because both parts sit in the same area of the suspension. Moreover, both promise a lower stance, and you'll see plenty of opinions online. Before you order parts, you probably have questions like:
- How low will this go?
- Will my wheels still fit?
- Will the truck still ride well?
This guide compares how lowering control arms and drop spindles work, what to consider before choosing either option, and how to check compatibility before ordering.
How Lowering Control Arms Lower a Truck
Lowering control arms reduce ride height through changes to the control arm design and the position of suspension components. DJM Suspension's Calmax Control Arms use a design that repositions the spring perch and lower ball joint to achieve a drop on compatible applications.
Unlike lowering springs, which change ride height through the spring setup, lowering control arms achieve the drop through the design of the arms. The exact mechanism and compatible components depend on the vehicle application.
What Changes With Lowering Control Arms?
The control arm design affects the relationship between several suspension components:
- Spring Perch: Its position helps determine the resulting ride height on applications that use this design.
- Lower Ball Joint: Its position relative to the spring perch and frame changes according to the control arm design.
- Ride height: The revised component geometry allows the truck to sit lower.
What Should You Check?
- The spindle and hub position
- The frame mounting points
- On torsion-bar trucks, often the factory torsion bar load settings, depending on the application
Because the arm does the lowering, truck lowering control arms usually bolt in as a direct replacement for the factory arms. If a diagram is available for your application, look closely at where the spring perch sits compared with the stock arm. That one detail shows how the drop is achieved.
How Drop Spindles Lower a Truck
Drop spindles lower your truck by changing the position of the wheel hub relative to the suspension. Instead of changing the spring perch position, drop spindles move the axle or hub center upward relative to the lower ball joint. This brings the truck's frame and body closer to the ground.
One major advantage is that the factory springs can generally remain in place. Because the original springs retain their intended position, drop spindles can preserve much of the factory suspension's spring behavior.
What Should You Consider Before Choosing Drop Spindles?
Although truck drop spindles offer a practical lowering solution, several factors deserve attention.
- Wheel Clearance: Some spindle designs require specific wheel sizes, offsets, or clearances.
- Alignment: Suspension geometry and steering alignment need checking after installation.
- Suspension Travel: Available travel depends on the complete suspension setup.
- Ride Quality: Factory springs may remain, but shocks, tires, and other components still affect comfort.
You should also confirm that the spindle design matches your truck's braking system, steering components, and drivetrain configuration. The next section looks at each of these more closely.
Lowering Control Arms vs. Drop Spindles Compared
Comparing drop spindles vs control arms helps you identify which components better match your lowering goals. Both methods can provide a lowered stance, but they differ in how they change suspension geometry and interact with existing components.
| Factor | Lowering Control Arms | Drop Spindles |
|---|---|---|
| How lowering is achieved | Changes the relationship between the spring perch, lower ball joint, and frame | Moves the axle/hub center upward relative to the lower ball joint |
| Typical drop range (per DJM application data) | Varies by vehicle. Check DJM's listing for your truck | Varies by vehicle. Check DJM's listing for your truck |
| Suspension travel considerations | Ride height changes at the arm, which can affect available travel depending on the design | Suspension geometry stays largely stock, so travel can stay closer to factory |
| Wheel and tire clearance | Usually works with stock-style wheel setups; tire-to-fender clearance changes with the lower stance | Spindle design may require certain wheel diameters or offsets to clear |
| Alignment considerations | Some designs allow camber, caster, or ball joint angle adjustment; get an alignment after installing | Get an alignment after installing |
| Ride quality factors | Depends on how the design handles spring or torsion loading and on the bushing material | Factory springs stay in place, so ride feel depends on the rest of the setup |
| Fitment notes (application, 2WD/4WD) | Made for specific makes, models, and drivetrains; some applications include 4WD | Made for specific applications; availability for 4WD depends on the vehicle |
When you weigh drop spindles vs control arms, keep in mind that fitment depends heavily on the vehicle. You must consider everything, including year, cab, drivetrain, and factory suspension type. Confirm that a part is listed for your exact application before you choose.
When Each Option Makes More Sense
People often ask about the best way to lower a truck, but the honest answer is that it depends on your build. These scenarios can help you sort it out.
Goals that Favor Lowering Control Arms:
- Keeping your current wheels while avoiding spindle-related clearance limits.
- Alignment adjustability built into the part, if your application's design offers it.
- A torsion-bar truck where cranking the bars down to get the drop isn't appealing.
- The option to add more drop later by combining components.
Goals that Favor Drop Spindles:
- Keeping factory springs and suspension geometry as close to stock as possible.
- Wheel plans that already fit the spindle's clearance requirements.
- A lower stance, with wheel diameter and offset confirmed first.
- A daily driver that should keep suspension travel close to stock.
Questions You Should Ask Before Ordering
- What's your current ride height? Measure from the wheel center to the fender lip on each side so you have a baseline.
- What are your wheel specs? Write down the diameter, width, and offset. Many fitment surprises come from wheels that don't clear new spindles or brakes.
- Is your truck daily driven or mostly for shows? That affects how much ride comfort and travel you're willing to give up.
- What front-end setup do you have now? Coil springs or torsion bars, 2WD or 4WD, and any earlier modifications all affect your options.
Measure your current ride height before buying parts. Check wheel specs and inspect existing suspension. These simple checks can help you avoid ordering components that do not match your build. At DJM Suspension, you can shop different vehicle-specific lowering products based on the year, make, model, and drivetrain.
Combining Lowering Control Arms With Other Parts
Some truck builds use multiple lowering components to achieve a greater drop or balance the front and rear ride heights. For example, certain applications combine lowering control arms with lowering springs. Other setups may use compatible drop spindles alongside additional suspension components. However, combining lowering methods requires careful attention to suspension geometry, steering clearance, and available travel.
Pairing With Lowering Springs or Coilovers
Lowering springs can provide additional ride-height reduction when the manufacturer approves the combination.
Coilover compatibility also depends on your truck's suspension design and the specific components involved.
Balancing Front and Rear Drop
Lowering the front without considering the rear can leave your truck with an uneven stance. Rear lowering components, including shackles, hangers, or axle flip kits, may help achieve the desired front-to-rear balance.
Why Matched Kits Help
A complete lowering kit simplifies component selection by combining compatible front and rear suspension parts designed for a specific truck. For example, the 1999-2006 Chevy/GMC Silverado 3-inch Front / 4-inch Rear Complete Lowering Kit (Shocks Included) combines 3-inch front lowering control arms, a 4-inch rear hanger and shackle lowering kit, and front and rear SuperShocks.
This setup helps you achieve a balanced lowered stance without selecting each component separately. However, you still need to confirm vehicle fitment and review the included components before ordering.
Frequently Asked Questions
Can both lowering control arms and drop spindles be used together?
On some applications, yes. Certain trucks can run lowering control arms and drop spindles together for a larger drop. Check that your vehicle's listing supports the combination before you order.
Is an alignment needed afterward?
Yes, any change to front-end components affects alignment, so a professional alignment after installation is a good idea. Some control arm designs also allow camber or caster adjustment.
Do they work on 4WD trucks?
It depends on the application. Some lowering parts are made for specific 4WD trucks and others are only for 2WD, so check fitment for your exact year, model, and drivetrain.
Choose the Right Drop for Your Truck
The main difference in the lowering control arms vs drop spindles decision comes down to where the drop happens. Lowering control arms change the relationship between the spring perch, the ball joint, and the frame. Drop spindles move the hub center upward and leave the springs and much of the factory geometry alone. Both are good options, and the right one depends on your wheels, your ride quality goals, and how you use your truck.
If you want to lower your truck, make sure to confirm fitment for your specific truck. At DJM Suspension, you can shop using the specifics you want. Browse the DJM Suspension shop to find parts for your exact year, make, and model.
Not sure which option fits your build? Contact us and our team will help you choose.
Support the Vehicle at Normal Ride Height
Support the axle so the suspension carries the vehicle’s weight. Measurements taken while the suspension hangs will not provide an accurate pinion angle.
Measure the Driveshaft Angle
Place a digital angle finder or inclinometer against the driveshaft and record the reading.
Measure the Pinion Yoke Angle
Place the angle finder against the flat surface of the pinion yoke or differential flange and record the second reading.
Compare the Two Measurements
For a typical street-driven leaf-spring truck with a single-piece driveshaft, the pinion usually points slightly downward relative to the driveshaft at ride height, commonly around 1 to 3 degrees. This position allows the pinion to rotate upward under load. The correct setting depends on the truck, ride height, and driveline configuration.
After installing the shims, repeat the measurement process to verify the adjustment and confirm you've hit the angle you're after. Knowing how to set differential pinion angle correctly comes down to accurate before-and-after measurements, not visual estimates.
Selecting and Installing a Pinion Angle Shim Kit
Which shim you need depends on how much adjustment you need and the design of your rear axle housing. Pinion angle shim kits are usually available in different angles, commonly 2, 4, and 6 degrees.
2 Degree Pinion Angle Shim Kit
A 2-degree pinion angle shim kit works well for smaller corrections, where your pinion angle needs just a slight adjustment after lowering your truck. It's a good fit when the difference between your measurements is minimal.
4 Degree Pinion Angle Shim Kit
On the other hand, a 4-degree pinion angle shim kit gives you a larger angle change for trucks that need more correction than a smaller shim can provide. Base your choice on your measured pinion angle readings, not just how much you've lowered your suspension.
6 Degree Pinion Angle Shim Kit
A 6-degree pinion angle shim kit is built for situations where you need a bigger adjustment to bring your rear axle and driveshaft alignment back within range. This is typically what you'll reach for when suspension modifications create a more noticeable change in driveline geometry..
Proper Installation and Final Checks
Once you've selected the right pinion shim, install and verify it to get your driveline aligned. Here's what to keep in mind:
- Installation Location: Pinion shims sit between the axle housing and mounting brackets, allowing your rear axle angle to rotate into the correct position.
- Access Requirements: Installation varies by vehicle. Some trucks give you easier access, while others require removing certain suspension components.
- Shim Direction: Always check the correct shim orientation before installation. Installing it backward can shift the pinion angle in the wrong direction and create additional alignment issues.
- Final Measurement Check: After installation, recheck the pinion angle to confirm the adjustment worked and your driveline can transfer power smoothly.
Fine-Tuning Pinion Angle After Installation
After installing the shim, verify the adjustment through accurate measurements. Recheck the pinion and driveshaft angles using the same method you followed during your initial inspection. This confirms the correction brought your driveline into the position you wanted.
If the angle is close but still needs fine-tuning, you can adjust further by selecting a different shim size or combining approved shim increments. Even small angle changes can noticeably affect driveline smoothness and component stress.
A test drive also plays an important role in confirming fit. Your truck should accelerate smoothly without vibrations, harsh movements, or unusual driveline noises. If these symptoms continue, your pinion angle may need additional correction.
If you're working on getting the correct pinion angle after lowering a truck, also inspect other suspension components that may affect driveline alignment.
Maintenance Tip: Recheck the pinion angle after 300-500 miles. Suspension components can settle slightly after installation, which may alter driveline geometry.
Common Pinion Angle Mistakes and How to Avoid Them
Setting the pinion angle correctly takes careful measurement, the right shim selection, and attention to your complete suspension setup. Avoiding these common mistakes helps you maintain smooth driveline operation and reduce unnecessary wear:
- Skipping Initial Measurements: Adjusting the pinion angle without checking your current setup can lead to the wrong correction. Accurate readings help you determine the actual adjustment you need and avoid installing an unsuitable shim.
- Choosing the Wrong Shim Angle: A shim with too much or too little correction can leave your driveline outside its ideal range. Match the shim degree to your actual measurements to get the angle you need.
- Overlooking Suspension Geometry Changes: Lowering your truck can affect multiple suspension and driveline positions beyond the pinion angle. Inspect related components to catch alignment changes that could affect overall performance.
Frequently Asked Questions
What is the ideal pinion angle for a lowered truck?
Most lowered vehicles use a slight negative pinion angle, commonly around zero to two degrees. The exact setting depends on your vehicle, suspension design, driveshaft angle, and intended use.
Can I adjust the pinion angle without removing the differential?
You'll typically correct the pinion angle by installing shims between the axle housing and mounting brackets. The differential itself doesn't usually need to come out.
How much will pinion angle shims cost?
Cost depends on the shim type, your vehicle application, and how much adjustment you need. The price varies depending on the vehicle and shim angle. In most cases, a shim kit costs far less than repairing driveline components damaged by prolonged vibration.
Can an incorrect pinion angle cause vibration?
Yes. An incorrect pinion angle is one of the most common causes of driveline vibration after lowering a truck. The vibration is often most noticeable during acceleration or at highway speeds.
Final Thoughts
Setting your pinion angle correctly plays a big role in keeping a lowered truck smooth and reliable. Taking accurate measurements, choosing the right shim, and installing it correctly helps you cut down on vibration, improve driveline performance, and reduce unnecessary stress on components.
Whether you're installing a complete lowering kit or making final driveline adjustments, setting the pinion angle correctly helps your truck perform as well as it looks.
DJM Suspension has been helping automotive enthusiasts achieve the perfect lowered stance since the early 1970s. As a family-owned, American manufacturer, DJM has built its reputation on high-quality lowering components for trucks and SUVs, with a focus on precision, durability, and performance.
If you're correcting driveline geometry after lowering your truck, explore DJM Suspension's lowering kits and pinion angle shim kits to find the right components for your setup.
