1973-1987 C-10 5 Inch Rear Lowering Kit (With Fully Adjustable Pinion Angle)
$180.63
Drop your 1973-1987 Chevy or GMC C10 5 inches in the rear with this C10 rear lowering kit from DJM Suspension. The flip kit relocates the axle above the leaf springs for a clean, aggressive stance, while the fully adjustable pinion angle bracket lets you fine-tune driveline alignment for stock or aftermarket rear ends.
Get the stance your C-10 deserves with DJM’s 5 Inch Rear Lowering Kit, engineered specifically for 1973-1987 Chevy and GMC C10 trucks. This C10 rear lowering kit uses a flip kit design that relocates the rear axle above the leaf springs instead of below them, delivering a full 5-inch rear drop for a clean, leveled stance without sacrificing ride quality.
At the heart of this setup is a fully adjustable pinion angle bracket. Every rear end sits a little differently, especially when running aftermarket 9-inch, 12-bolt, or other non-stock differentials, and an incorrect pinion angle can contribute to driveline vibration and increased U-joint stress.
DJM Suspension’s upper axle plate allows you to precisely set your pinion angle for proper driveline alignment, helping your truck drive as good as it looks. Whether you’re building a weekend cruiser or a custom C10, this 5-inch rear lowering kit gives you the control and stance you need.
What’s included:
- New axle locator brackets with fully adjustable pinion angle

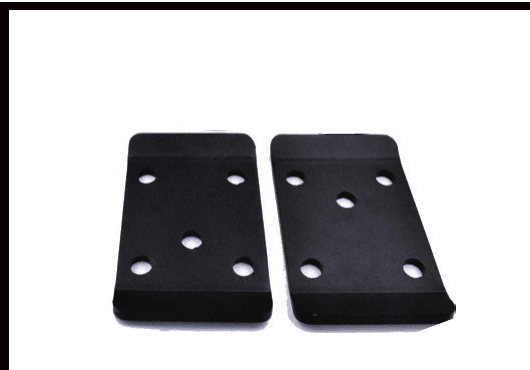

- U-bolts and spring plates
- Full installation instructions
Description
Why Buy from DJM Suspension
5 Decades of Lowering Knowledge
DJM Suspension has focused on lowered trucks since the early 1970s, bringing unparalleled suspension engineering knowledge to parts designed for classic C10 applications.
Made in the USA
We design and manufacture this C10 rear lowering kit and other parts in the US, giving you components built around the fit and function of your truck.
Adjustable Driveline Setup
The fully adjustable pinion angle gives you more control over axle positioning and driveline alignment, making it easier to fine-tune the setup for your truck.
About DJM Suspension
DJM Suspension is a family-owned and operated American manufacturer with roots in the aftermarket truck scene dating back to the early 1970s. We design and build lowering components for drivers who want the right stance without guessing about fitment. Our long history with lowered trucks helps us create parts made for on-road vehicle applications.
Frequently Asked Questions
Give Your C10 the Rear Drop It Deserves
Get a 5-inch rear drop with adjustable pinion-angle control built around your classic Chevy or GMC C10.
Recommended pairing: DJM 1800 series shocks (sold separately)
Additional information
| Weight | 20 lbs |
|---|
Flip Kit
Universal Flip Kit
Always take inventory before starting any project!
Want to see it in action? Watch the test drive video.

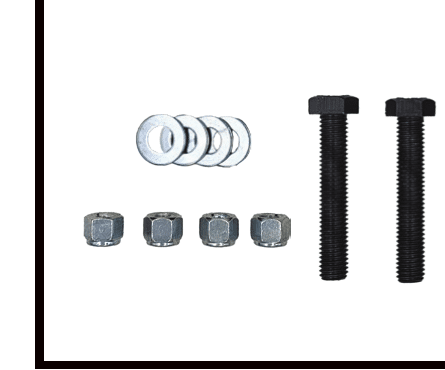

Kit Contents
8) 5/8" x18 Ny-Lock Nuts
8) 5/8" Flat Washers
2) 5/8 x 11 x 3.5" Hex Bolt
2) 5/8" x 11 x 4" Hex Bolts
4) 5/8 x 11" Ny-Lock Nuts
Installation Overview
Installation Instructions
Take measurements from lip of fender to center of wheel on a flat surface. (See included Installation guide)
Remove front and rear spring eye bolts to release leaf spring.

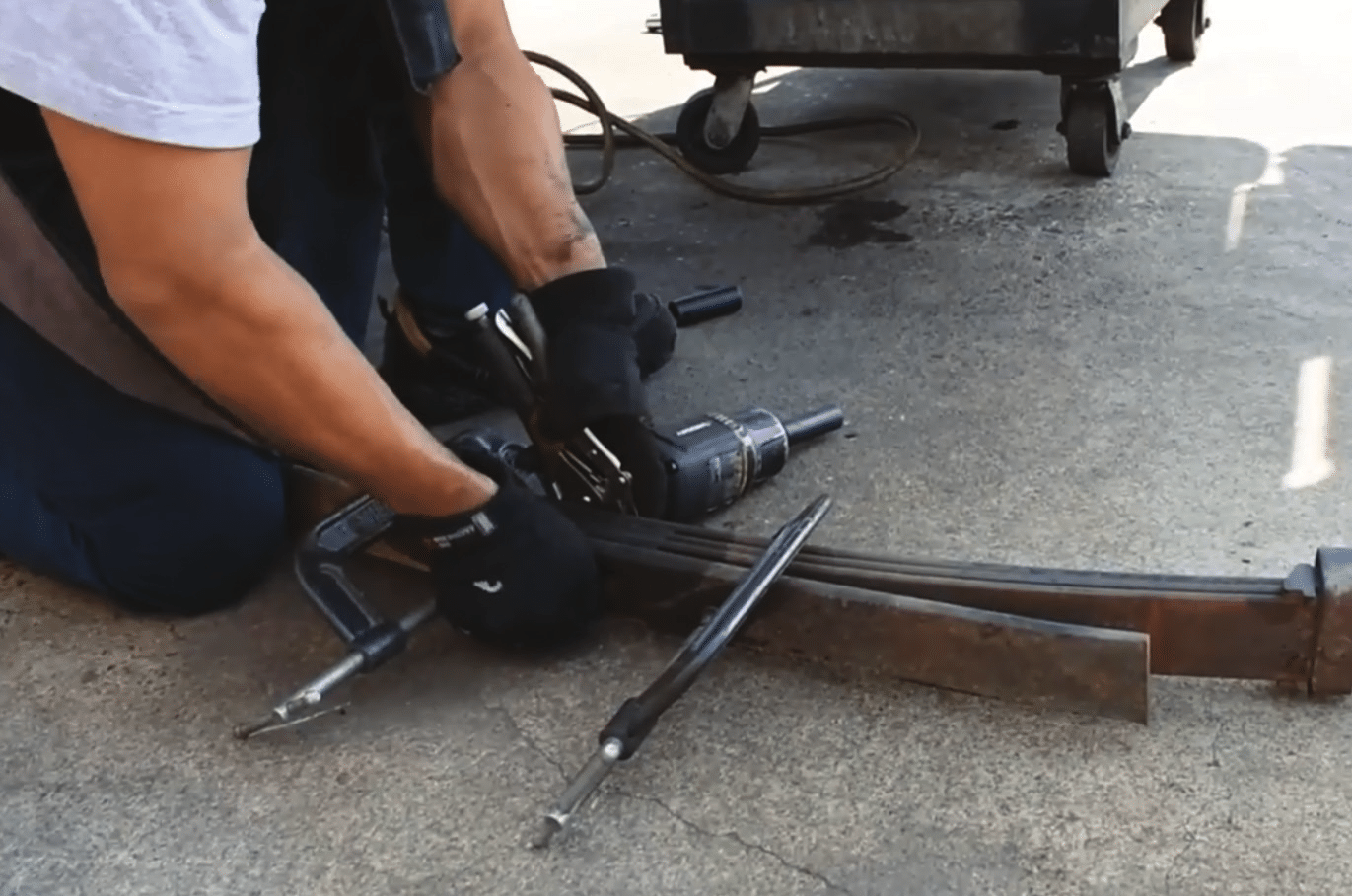

Remove leaf spring and flip center bolt in middle of leaf spring one at a time. This will center the rear axle and pull the drive shaft back from the transmission.
Reinstall leaf spring under axle.

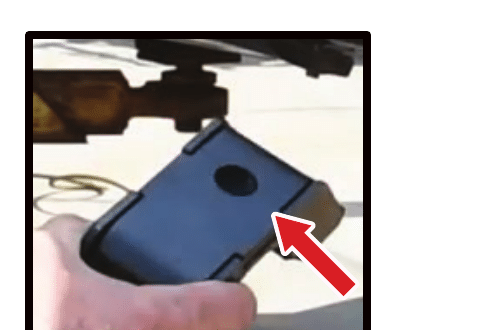

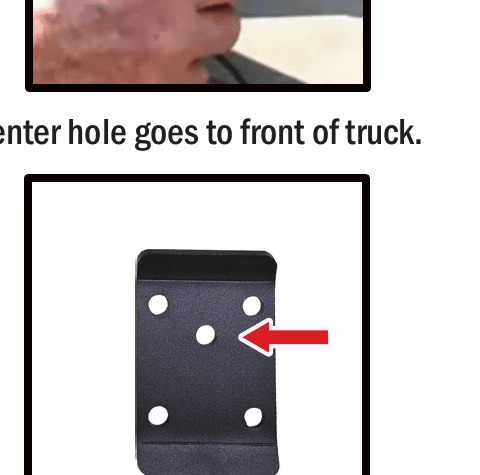

Place new axle locator bracket on top of the spring. The small hole goes to the front of vehicle.

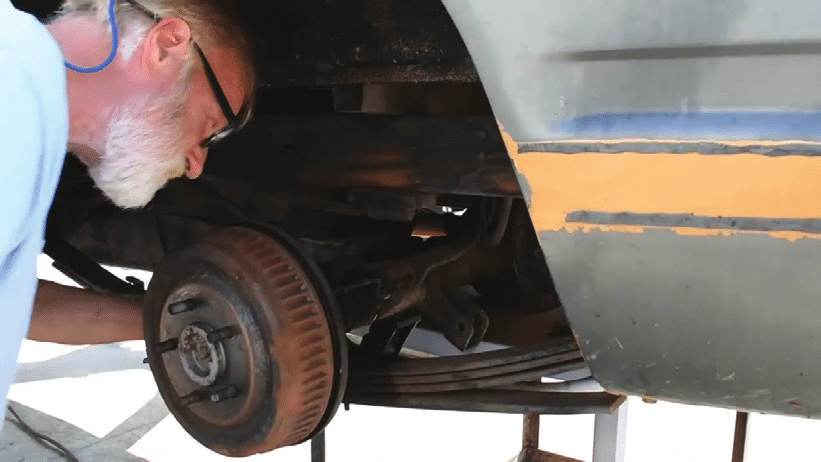

Lower axle onto new axle supports.

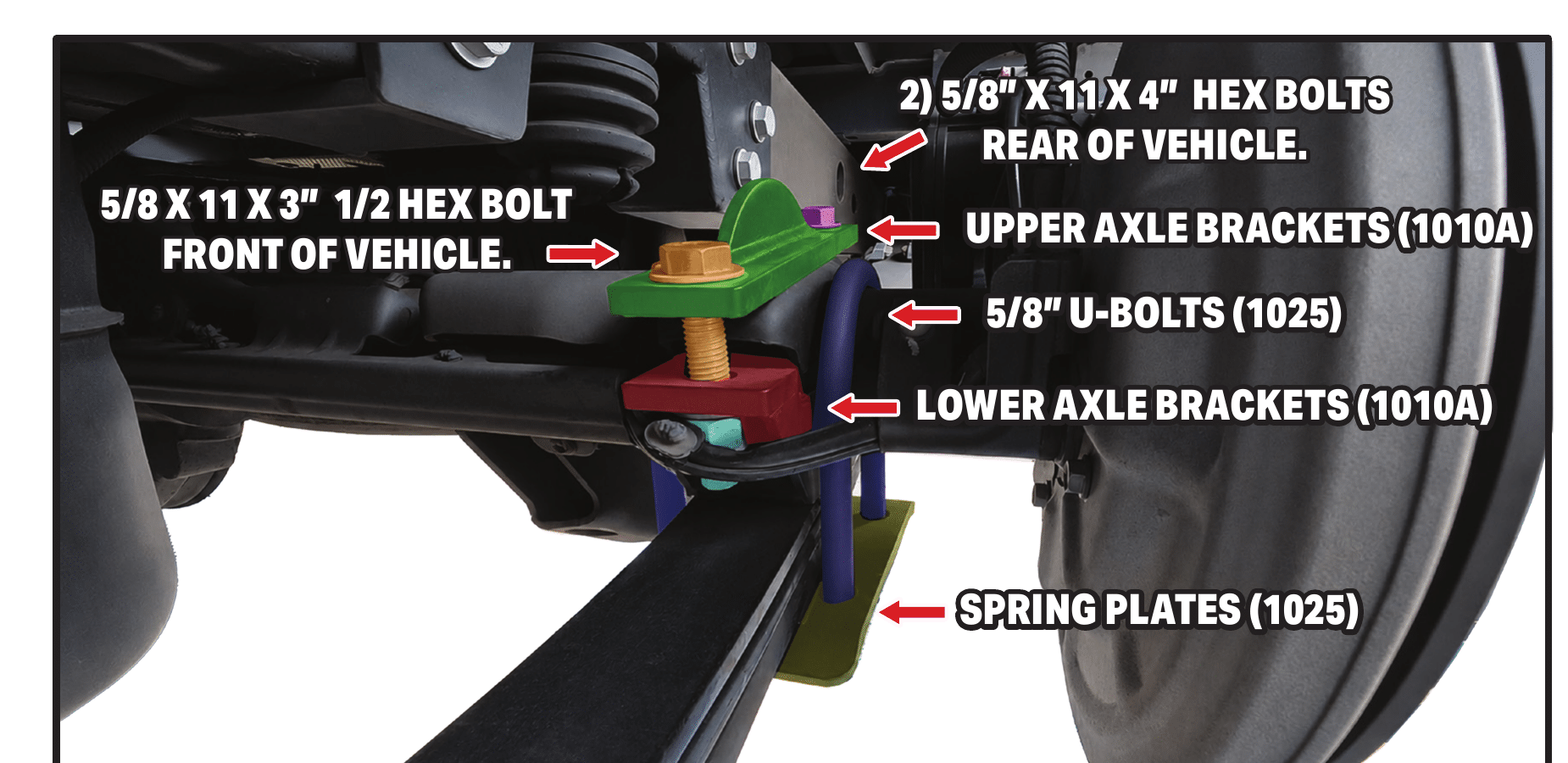

Place new upper axle plate with pin down on top of axle.
5/8 X 11 X 3” 1/2 HEX BOLT to engine.
2) 5/8” X 11 X 4” HEX BOLTS to rear of vehicle.
Rotate axle to desired pinion angle if necessary.

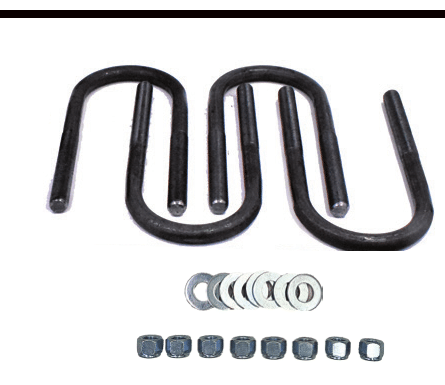

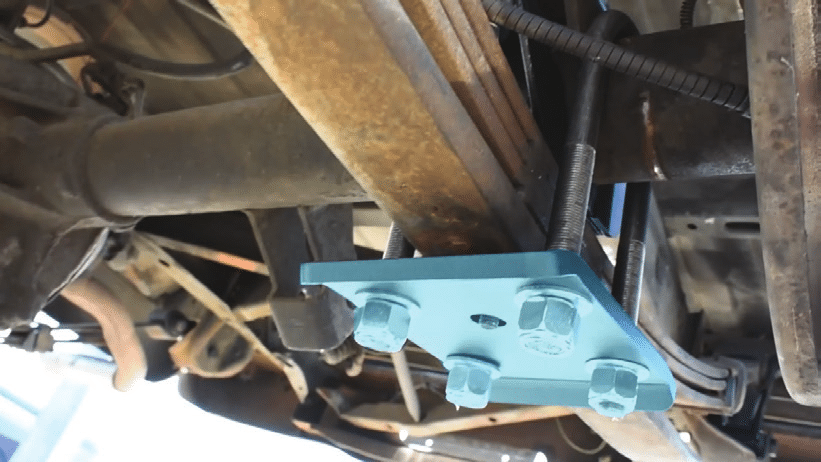

Install U-Bolts and Spring Plates.
A Note on Pinion Angle
Support the axle so the suspension is carrying the vehicle's weight. Pinion angle measurements taken with the suspension hanging are inaccurate.
Measure the driveshaft angle. Use a digital angle finder or inclinometer on the driveshaft.
Measure the pinion yoke angle. Place the angle finder on the flat surface of the pinion yoke or differential flange.
Compare the two angles. For a typical street-driven leaf-spring truck with a single-piece driveshaft, the pinion generally points slightly downward relative to the driveshaft at ride height (often around 1°–3°). This allows the pinion to rotate upward under load and align correctly. The exact value depends on your truck, ride height, and driveline configuration.
