Home » Shop » 1973-1979 Ford F100 3 inch Front / 4 inch Rear Complete Lowering Kit

1973-1979 Ford F100 3 inch Front / 4 inch Rear Complete Lowering Kit

From: $1,062.05

Rear Shock 1910 (stem to loop) or 1900 (loop to loop) depending on factory mounting style.

Please choose appropriate shock below for the rear

1965–1979 Ford F100 3 inch Lowering I-Beams





1973–1996 Ford F100/F150 4 inch Rear Lowering Kit





14.5″ Stem / Loop SuperShock (1415) × 2

14.5″ Stem / Loop Calmax SuperShock
Twin tube nitrogen charged shock for
lowered and performance trucks
Sold each!

Extended - 14.5"  Collapsed - 9.0"

19.5″ Loop / Loop SuperShock (1900) × 2

19.5″ Loop / Loop Calmax SuperShock
Twin tube nitrogen charged shock for
lowered and performance trucks
Sold each!

Extended - 19.5" Collapsed - 12.25"

19.5″ Stem / Loop SuperShock (1910) × 2

19.5″ Stem / Loop Calmax SuperShock
Twin tube nitrogen charged shock for
lowered and performance trucks
Sold each!

Extended - 19.5"  Collapsed - 12.25"

SKU: DJM3004A-3/4 Categories: , , ,

Description

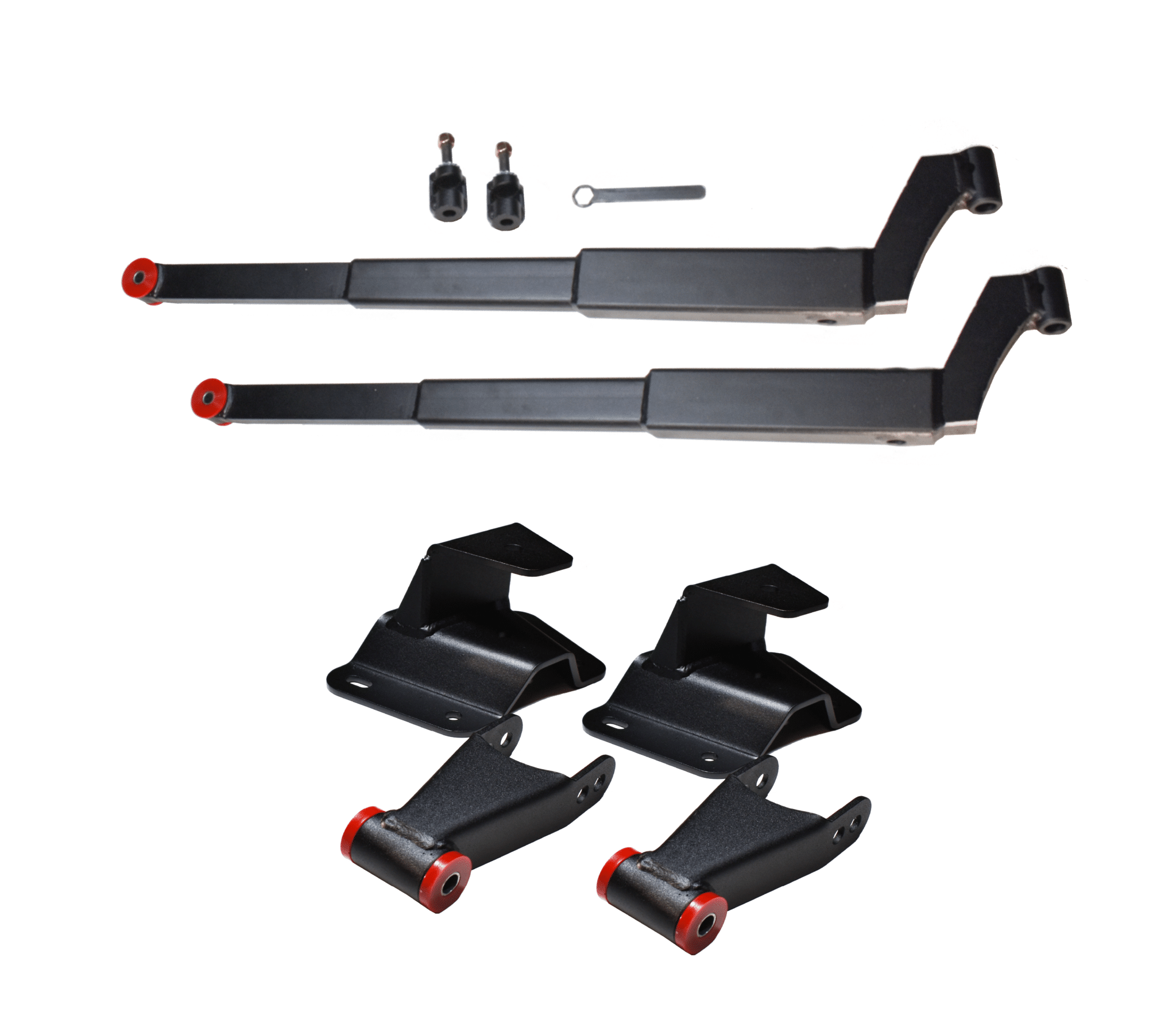

1973-1979 Ford F100 3 inch Front / 4 inch Rear Complete Lowering Kit

This 3/4 kit uses  gives you a 3 inch drop by simply removing the factory beam and replacing it with our new lowered I-beams. The rear is lowered with a hanger and shackle kit that yields a full 4″ drop.

Shocks are Not included with the kit.  DJM recommends:

  • Front Shock 1415 (sold each)
  • Rear Shock 1910 (stem to loop) or 1900 (loop to loop) depending on factory mounting style (sold each)

We use the Chadwick & Trefethen 09260#26 13/16" - 7/8" Model LP Adjustable Blade Reamers-- for reaming out the king pin.

Front Instructions
Rear Instructions

Additional information

Weight 90 lbs
